DB DRIVE

WDX12G5.4

Name: WDX12G5.4
Brand: DB DRIVE
Price: 699.95 USD
Availability: InStock

$699.95 USD

~~$749.95 USD~~ $699.95 USD

Sale Sold out

Shipping calculated at checkout.

{"id":9922879586614,"title":"WDX12G5.4","handle":"wdx12g5-4","description":"\u003csection class=\"row\"\u003e\n\u003cdiv class=\"spb_content_element col-sm-12 spb_text_column\"\u003e\n\u003cdiv class=\"spb-asset-content\"\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutside Diameter (A)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12.95″ (329mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCutout Diameter (B)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e11.18″ (284mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMounting Depth (C)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8.01″ (203.5mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003csection class=\"row\"\u003e\n\u003cdiv class=\"spb_content_element col-sm-12 spb_text_column\"\u003e\n\u003cdiv class=\"spb-asset-content\"\u003e\n\u003ctable\u003e\n\u003cthead align=\"left\"\u003e\n\u003ctr\u003e\n\u003cth\u003eGeneral Specifications\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStructure\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12″ (30.4cm) Woofer\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDynamic Power Handling\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6000 Watts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNominal Power Handling\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3000 Watts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eImpedance\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDual 4Ω Voice Coil\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003csection class=\"row\"\u003e\n\u003cdiv class=\"spb_content_element col-sm-12 spb_text_column\"\u003e\n\u003cdiv class=\"spb-asset-content\"\u003e\n\u003ctable\u003e\n\u003cthead align=\"left\"\u003e\n\u003ctr\u003e\n\u003cth\u003eParameters\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eResonant Frequency (fs)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e39.94Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eD.C. Voice Coil Resistance (Re)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2 x 3.2Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMechanical Quality Factor (Qms)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.09\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eElectrical Quality Factor (Qes)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.59\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTotal Quality Factor (Qts)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.519\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eEquivalent Air Volume to Cms (Vas)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e22.58 L\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMass of Diaphragm\/Coil (Mms)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e281.40 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eForce Factor (Bl)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e27.57\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSound Pressure Level (SPL)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e85.7 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e","published_at":"2024-10-31T12:53:22-05:00","created_at":"2024-10-31T12:53:22-05:00","vendor":"DB DRIVE","type":"Subwoofer","tags":["Best Selling","New Arrival"],"price":69995,"price_min":69995,"price_max":69995,"available":true,"price_varies":false,"compare_at_price":74995,"compare_at_price_min":74995,"compare_at_price_max":74995,"compare_at_price_varies":false,"variants":[{"id":51193416548662,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WDX12G5.4","public_title":null,"options":["Default Title"],"price":69995,"weight":11340,"compare_at_price":74995,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Both-2_4d23077d-0894-4faa-8397-f50592fd44e9.gif?v=1730397154","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Front-2_638c7f78-6fe7-4b66-b3a2-7f57d944efcb.gif?v=1730397158","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Side-2_52800799-cbe8-40d2-bada-45244b3a153c.gif?v=1730397161","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX10G5-Dimension-1-1000x802_41969140-9101-4faf-be5f-28f2181498e0.jpg?v=1730397166","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5-Dimension-2-1000x802.jpg?v=1730397169"],"featured_image":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Both-2_4d23077d-0894-4faa-8397-f50592fd44e9.gif?v=1730397154","options":["Title"],"media":[{"alt":null,"id":43674671350070,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Both-2_4d23077d-0894-4faa-8397-f50592fd44e9.gif?v=1730397154"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Both-2_4d23077d-0894-4faa-8397-f50592fd44e9.gif?v=1730397154","width":1200},{"alt":null,"id":43674671972662,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Front-2_638c7f78-6fe7-4b66-b3a2-7f57d944efcb.gif?v=1730397158"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Front-2_638c7f78-6fe7-4b66-b3a2-7f57d944efcb.gif?v=1730397158","width":1200},{"alt":null,"id":43674672267574,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Side-2_52800799-cbe8-40d2-bada-45244b3a153c.gif?v=1730397161"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5.2-Side-2_52800799-cbe8-40d2-bada-45244b3a153c.gif?v=1730397161","width":1200},{"alt":null,"id":43674672693558,"position":4,"preview_image":{"aspect_ratio":1.247,"height":802,"width":1000,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX10G5-Dimension-1-1000x802_41969140-9101-4faf-be5f-28f2181498e0.jpg?v=1730397166"},"aspect_ratio":1.247,"height":802,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX10G5-Dimension-1-1000x802_41969140-9101-4faf-be5f-28f2181498e0.jpg?v=1730397166","width":1000},{"alt":null,"id":43674673348918,"position":5,"preview_image":{"aspect_ratio":1.247,"height":802,"width":1000,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5-Dimension-2-1000x802.jpg?v=1730397169"},"aspect_ratio":1.247,"height":802,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/WDX12G5-Dimension-2-1000x802.jpg?v=1730397169","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003csection class=\"row\"\u003e\n\u003cdiv class=\"spb_content_element col-sm-12 spb_text_column\"\u003e\n\u003cdiv class=\"spb-asset-content\"\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutside Diameter (A)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12.95″ (329mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCutout Diameter (B)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e11.18″ (284mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMounting Depth (C)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8.01″ (203.5mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003csection class=\"row\"\u003e\n\u003cdiv class=\"spb_content_element col-sm-12 spb_text_column\"\u003e\n\u003cdiv class=\"spb-asset-content\"\u003e\n\u003ctable\u003e\n\u003cthead align=\"left\"\u003e\n\u003ctr\u003e\n\u003cth\u003eGeneral Specifications\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStructure\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12″ (30.4cm) Woofer\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDynamic Power Handling\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6000 Watts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNominal Power Handling\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3000 Watts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eImpedance\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDual 4Ω Voice Coil\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003csection class=\"row\"\u003e\n\u003cdiv class=\"spb_content_element col-sm-12 spb_text_column\"\u003e\n\u003cdiv class=\"spb-asset-content\"\u003e\n\u003ctable\u003e\n\u003cthead align=\"left\"\u003e\n\u003ctr\u003e\n\u003cth\u003eParameters\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eResonant Frequency (fs)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e39.94Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eD.C. Voice Coil Resistance (Re)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2 x 3.2Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMechanical Quality Factor (Qms)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.09\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eElectrical Quality Factor (Qes)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.59\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTotal Quality Factor (Qts)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.519\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eEquivalent Air Volume to Cms (Vas)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e22.58 L\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMass of Diaphragm\/Coil (Mms)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e281.40 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eForce Factor (Bl)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e27.57\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSound Pressure Level (SPL)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e85.7 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e"}

Product variants

Quantity

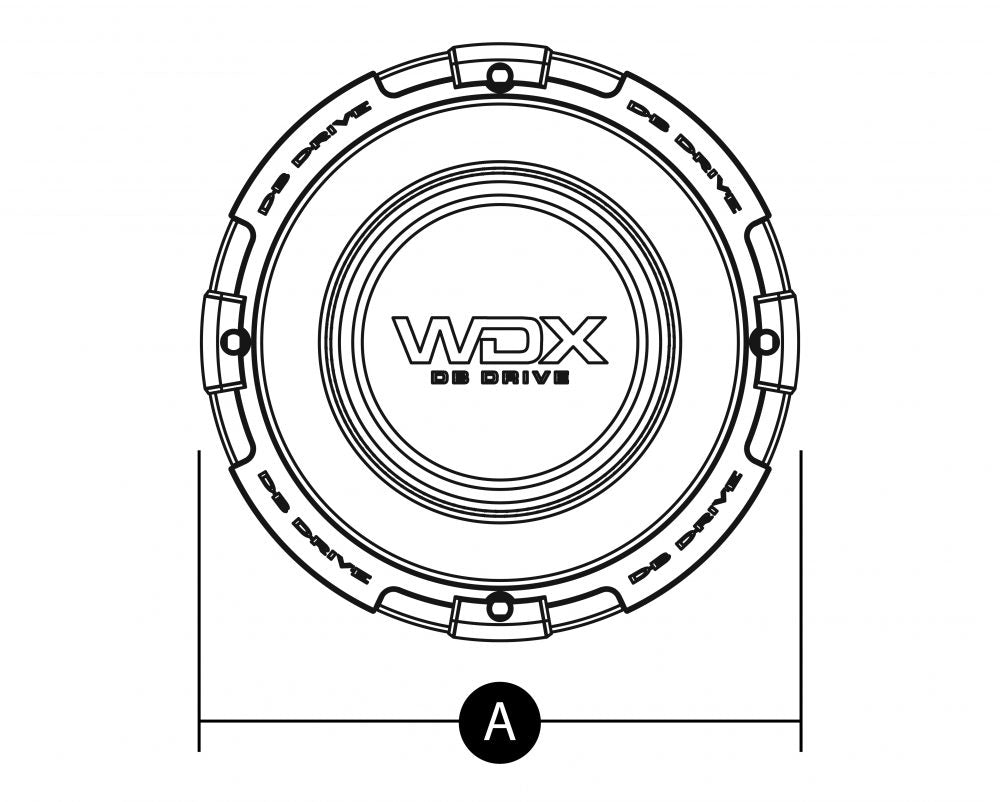

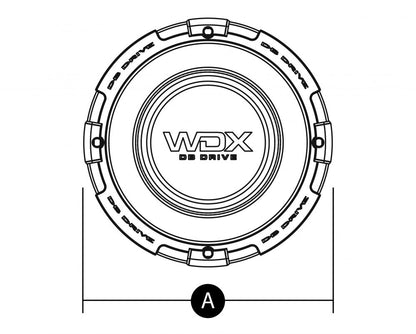

Outside Diameter (A)	12.95″ (329mm)

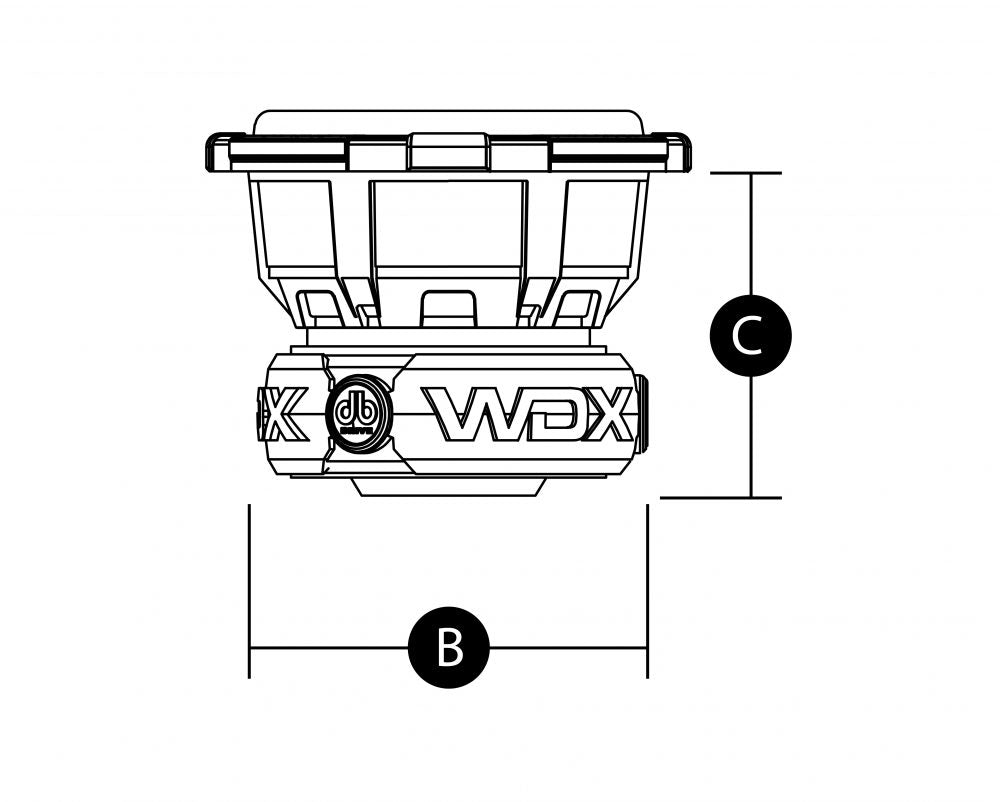

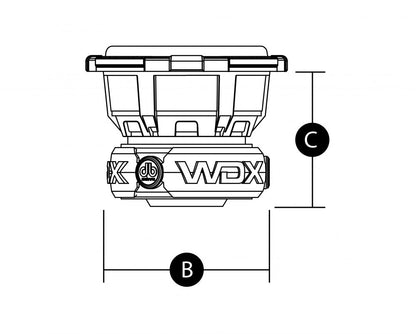

Cutout Diameter (B)	11.18″ (284mm)
Mounting Depth (C)	8.01″ (203.5mm)

General Specifications
Structure	12″ (30.4cm) Woofer
Dynamic Power Handling	6000 Watts
Nominal Power Handling	3000 Watts
Impedance	Dual 4Ω Voice Coil

Parameters
Resonant Frequency (fs)	39.94Hz
D.C. Voice Coil Resistance (Re)	2 x 3.2Ω
Mechanical Quality Factor (Qms)	4.09
Electrical Quality Factor (Qes)	0.59
Total Quality Factor (Qts)	0.519
Equivalent Air Volume to Cms (Vas)	22.58 L
Mass of Diaphragm/Coil (Mms)	281.40 g
Force Factor (Bl)	27.57
Sound Pressure Level (SPL)	85.7 dB
