SALT-2000.6
SALT-2000.6
Regular price
$989.99 USD
Regular price
$1,187.99 USD
Sale price
$989.99 USD
Unit price
/
per
Shipping calculated at checkout.
| SALT-2000.6 FULL RANGE DIGITAL FEATURES |
| • Full Range Digital Amplifier |
| • High Efficiency Digital Multi-Channel Design |
| • Ch 1-4 – 2 ohm Stereo Stable • Ch 5/6 – 1 ohm Stereo Stable |
| • 12 dB/Octave – Variable Subsonic Filter |
| • 12 dB/Octave – Variable High Pass Filter |
| • 12 dB/Octave – Variable Low Pass Filter |
| • Crossover Multipliers – X1 / X10 |
| • Clipping Indicator |
| • 4 Way Protection Circuit (Thermal, Voltage, Speaker Short, DC Offset) |
| • Optional Wired Remote Control with Voltage & Temperature Display and Clipping Indicator |
-
Features
- Full Range Digital 6 Channel Amplifier

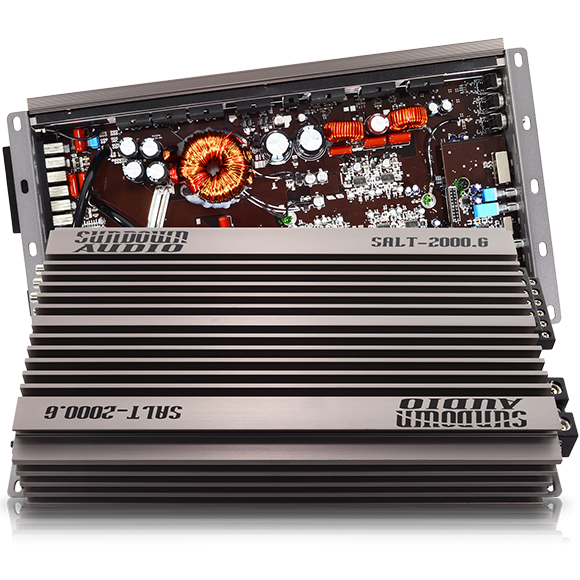

- Double Sided Through Hole Epoxy PCB
- Multi-Way Protection Circuitry ( Thermal / Voltage / Speaker Short / DC Offset )
- Voltage, Temperature, and Clipping Display Wired Remote Control (Optional / Not Included with Multi-Channels)
- Clipping indicator on amplifier side-panel
- Optimized for standard 12v charging systems (Low Voltage Technology)
-
Specifications
- Input Sensitivity : 6V - 0.2V
- 550 x 2 (CH5&6 Only) @ 1 ohms RMS Stereo
- 200 x 2 + 250 x 2 + 350 x 2 @ 2 ohms RMS Stereo
- 100 x 2 + 150 x 2 + 200 x 2 @ 4 ohms RMS Stereo
- 2 OHM Stereo Stable / 4 OHM Bridged Stable
- Variable Subsonic Crossover Filter : 10HZ - 100HZ
- Variable High Pass Filter : 50HZ - 500HZ ( 500HZ - 5KHZ at x10 )
- Variable Low Pass Filter : 50HZ - 500HZ ( 500Hz - 5KHZ at x10 )
- X1, X10 Crossover Multiply
- Efficiency : 75% 4OHM, at 100HZ
- Signal / Noise Ratio : 105DB <
- Damping Factor : 400 <
- Frequency Response : 10 Hz – 25khz
- 12DB/ OCT Variable Crossover Slope (HPF/LPF)
- 12DB/ OCT Variable Subsonic Crossover Slope
- Tested Voltage & THD : 12.8V & Less Than 1% THD
- Operation Voltage : DC 9V - 15.5V Power Input
- Recommended Fuse : 170 Amps
- Dimensions : 14.17” L x 6.85” W x 2.66” H
