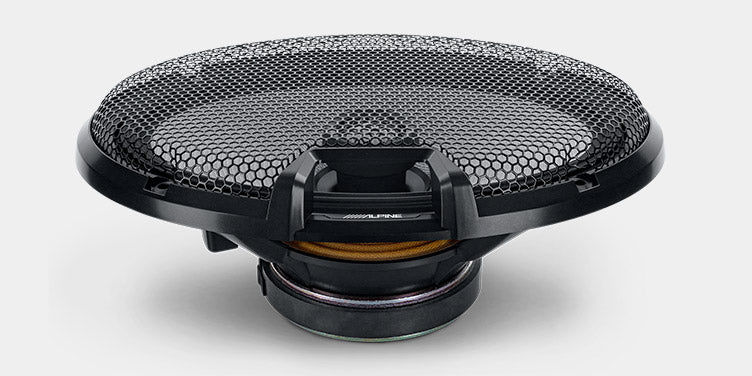

R2-S69C

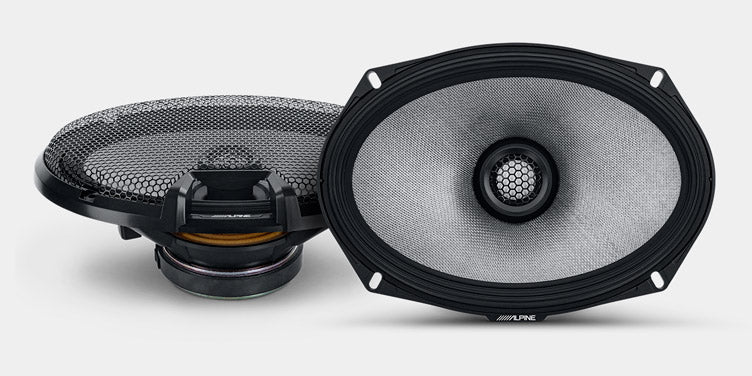

The R2-S69 is the 6x9” 2-Way Coax model of the new 2022 R-Series speaker line-up. It features a 16 x 24cm door woofer as well as an integrated tweeter with up to 40kHz frequency response. Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion. The all-new magnesium hard-dome tweeters deliver clear, detailed music reproduction and play up to 40kHz (Hi-Res Audio). The Coax-tweeters can be swiveled in their housing to point them right at the sweet-spot.

Specifications:

• 16 x 24cm (6x9”) Door Woofer (2pcs) with Integrated Coax Tweeters

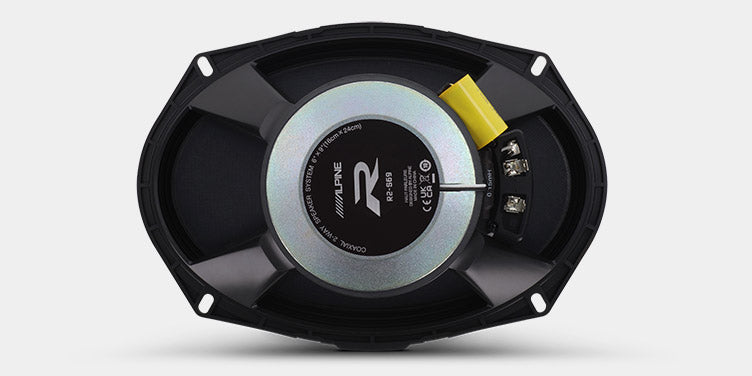

• Composite Baskets (Door Woofer)
• Magnesium Hard-Dome Tweeters
• Glass-Fiber Reinforced Cone (Door Woofer)
• Integrated X-Over Networks
• Included Speaker Grills
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 65Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 7,6cm
• Woofer Cutout Diameter: 14,9 x 22cm
