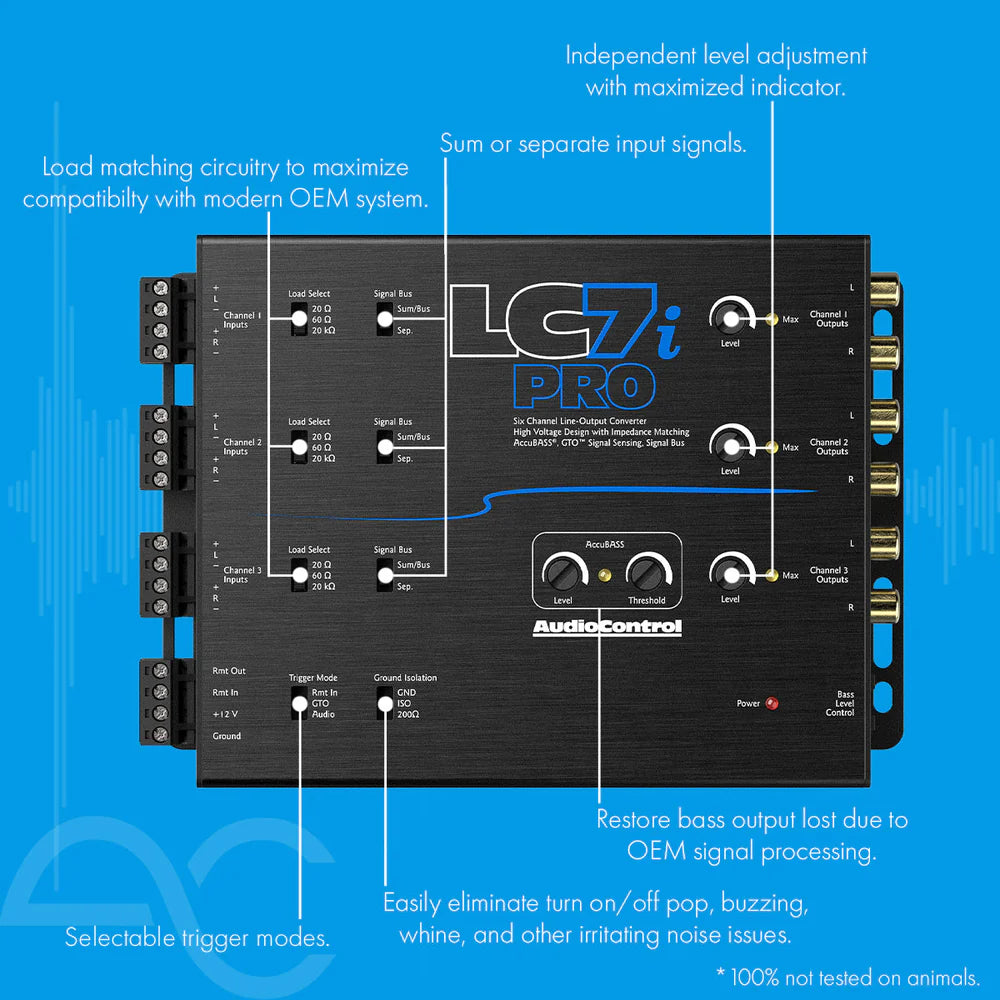

LC7i PRO

LC7i PRO

$239.01 USD
$279.00 USD $239.01 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 1 (6 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

OUTPUTS

  • Preamp Outputs: 6 (4 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/- 15 dB
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20 Hz – 20 kHz

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A

WEIGHTS & DIMENSIONS

  • Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
  • Weight: 1.15 lbs.

IN THE BOX: LC7i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
