E Series 400-amp ORANGE Billet GM truck 05-13

Name: E Series 400-amp ORANGE Billet GM truck 05-13
Brand: Mechman
Price: 699.0 USD
Availability: InStock

$699.00 USD

~~$799.00 USD~~ $699.00 USD

Sale Sold out

Shipping calculated at checkout.

{"id":9859659694390,"title":"E Series 400-amp ORANGE Billet GM truck 05-13","handle":"e-series-400-amp-orange-billet-gm-truck-05-13","description":"\u003cp\u003e\u003cspan\u003eB8302400OR\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThis unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt for proper belt tension.  Not recommended for \u003cstrong\u003esustained\u003c\/strong\u003e use above 5,000 RPM engine speed. ((Check instructions section for finding belt sizes and wiring)). If you DO NOT use the correct shorter belt, this will result in very low to no output and create extra work load for the alternator.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eNewly redesigned for 2020, The Elite series offers the highest possible amperage and durability available in a large case alternator. 6 phase technology combined with massive twin rectifier assemblies and 12 diodes makes these alternators totally durable for daily use, while still maintaining 200+ amps at engine idle speeds.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThese alternators use the more robust 4 pin style regulator than the OE 2 pin ECU controlled alternator. There is no extreme voltage fluctuation as this will bypass the RVC charging system on all 2005\u0026gt; GM truck applications. Simply install the included 1 wire P101 harness to a tested 12v \u003cstrong\u003eswitched\u003c\/strong\u003e source and plug in the included P103 module into the vehicles 2 pin original alternator wiring harness. No check battery light, no computer controlled voltage swings. The voltage you want, when you want it!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003eFitments:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable class=\"tableizer-table\" id=\"isPasted\"\u003e\n\u003cthead\u003e\n\u003ctr class=\"tableizer-firstrow\"\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eName\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eModel\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eEngine\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eYear(s)\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eBUICK\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eRainier\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-08\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCADILLAC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eEscalade\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.7 \/ 6.0 \/ 6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAvalanche\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.8\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.0\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e09-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e8.1\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e06-07\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eSuburban\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Gas Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-14\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eTahoe\/Full Size Blazer\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Gas Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eTrailblazer\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-09\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eTrailblazer\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.0\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-09\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eEnvoy\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-08\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.8\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.0\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e8.1\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e06-07\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eYukon\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Gas Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eHUMMER\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eH2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e08-09\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eHUMMER\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eH3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e08-10\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2024-10-15T12:17:16-05:00","created_at":"2024-10-15T12:17:16-05:00","vendor":"Mechman","type":"Alternator","tags":["Alternator","Best Selling","New Arrival"],"price":69900,"price_min":69900,"price_max":69900,"available":true,"price_varies":false,"compare_at_price":79900,"compare_at_price_min":79900,"compare_at_price_max":79900,"compare_at_price_varies":false,"variants":[{"id":51039159386422,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"E Series 400-amp ORANGE Billet GM truck 05-13","public_title":null,"options":["Default Title"],"price":69900,"weight":0,"compare_at_price":79900,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1604_39__55915.jpg?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/8206draw__11900.jpg?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1605_40__98962.jpg?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1606_47__67597.jpg?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/p101cropped__75487.webp?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/P103-001__55575_9a3a2e76-7e3d-4d34-80e0-55b1a5afef08.webp?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/p103CONNECTED__43371.jpg?v=1729012596","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/P103direction__65029.jpg?v=1729012596"],"featured_image":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1604_39__55915.jpg?v=1729012596","options":["Title"],"media":[{"alt":null,"id":43465144303926,"position":1,"preview_image":{"aspect_ratio":1.0,"height":640,"width":640,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1604_39__55915.jpg?v=1729012596"},"aspect_ratio":1.0,"height":640,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1604_39__55915.jpg?v=1729012596","width":640},{"alt":null,"id":43465144271158,"position":2,"preview_image":{"aspect_ratio":1.584,"height":202,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/8206draw__11900.jpg?v=1729012596"},"aspect_ratio":1.584,"height":202,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/8206draw__11900.jpg?v=1729012596","width":320},{"alt":null,"id":43465144336694,"position":3,"preview_image":{"aspect_ratio":1.0,"height":320,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1605_40__98962.jpg?v=1729012596"},"aspect_ratio":1.0,"height":320,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1605_40__98962.jpg?v=1729012596","width":320},{"alt":null,"id":43465144369462,"position":4,"preview_image":{"aspect_ratio":1.0,"height":320,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1606_47__67597.jpg?v=1729012596"},"aspect_ratio":1.0,"height":320,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/IMG_20230926_1606_47__67597.jpg?v=1729012596","width":320},{"alt":null,"id":43465144434998,"position":5,"preview_image":{"aspect_ratio":2.783,"height":115,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/p101cropped__75487.webp?v=1729012596"},"aspect_ratio":2.783,"height":115,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/p101cropped__75487.webp?v=1729012596","width":320},{"alt":null,"id":43465144467766,"position":6,"preview_image":{"aspect_ratio":1.0,"height":320,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/P103-001__55575_9a3a2e76-7e3d-4d34-80e0-55b1a5afef08.webp?v=1729012596"},"aspect_ratio":1.0,"height":320,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/P103-001__55575_9a3a2e76-7e3d-4d34-80e0-55b1a5afef08.webp?v=1729012596","width":320},{"alt":null,"id":43465144500534,"position":7,"preview_image":{"aspect_ratio":1.333,"height":240,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/p103CONNECTED__43371.jpg?v=1729012596"},"aspect_ratio":1.333,"height":240,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/p103CONNECTED__43371.jpg?v=1729012596","width":320},{"alt":null,"id":43465144533302,"position":8,"preview_image":{"aspect_ratio":1.013,"height":316,"width":320,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/P103direction__65029.jpg?v=1729012596"},"aspect_ratio":1.013,"height":316,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/P103direction__65029.jpg?v=1729012596","width":320}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cspan\u003eB8302400OR\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThis unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt for proper belt tension.  Not recommended for \u003cstrong\u003esustained\u003c\/strong\u003e use above 5,000 RPM engine speed. ((Check instructions section for finding belt sizes and wiring)). If you DO NOT use the correct shorter belt, this will result in very low to no output and create extra work load for the alternator.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eNewly redesigned for 2020, The Elite series offers the highest possible amperage and durability available in a large case alternator. 6 phase technology combined with massive twin rectifier assemblies and 12 diodes makes these alternators totally durable for daily use, while still maintaining 200+ amps at engine idle speeds.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThese alternators use the more robust 4 pin style regulator than the OE 2 pin ECU controlled alternator. There is no extreme voltage fluctuation as this will bypass the RVC charging system on all 2005\u0026gt; GM truck applications. Simply install the included 1 wire P101 harness to a tested 12v \u003cstrong\u003eswitched\u003c\/strong\u003e source and plug in the included P103 module into the vehicles 2 pin original alternator wiring harness. No check battery light, no computer controlled voltage swings. The voltage you want, when you want it!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003eFitments:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable class=\"tableizer-table\" id=\"isPasted\"\u003e\n\u003cthead\u003e\n\u003ctr class=\"tableizer-firstrow\"\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eName\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eModel\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eEngine\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003cth\u003e\n\u003cdiv\u003e\u003cspan\u003eYear(s)\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eBUICK\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eRainier\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-08\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCADILLAC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eEscalade\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.7 \/ 6.0 \/ 6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAvalanche\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.8\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.0\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e09-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck\/Silverado\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e8.1\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e06-07\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eSuburban\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Gas Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-14\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eTahoe\/Full Size Blazer\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Gas Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eTrailblazer\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-09\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eCHEVROLET\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eTrailblazer\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.0\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-09\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eEnvoy\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-08\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e4.8\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.0\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e07-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eFull Size Truck \/ Sierra\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e8.1\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e06-07\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eGMC\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eYukon\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eAll Gas Engines\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e05-13\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eHUMMER\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eH2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e6.2\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e08-09\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eHUMMER\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003eH3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e5.3\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\u003cspan\u003e08-10\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

Product variants

Quantity

B8302400OR

This unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt for proper belt tension. Not recommended for sustained use above 5,000 RPM engine speed. ((Check instructions section for finding belt sizes and wiring)). If you DO NOT use the correct shorter belt, this will result in very low to no output and create extra work load for the alternator.

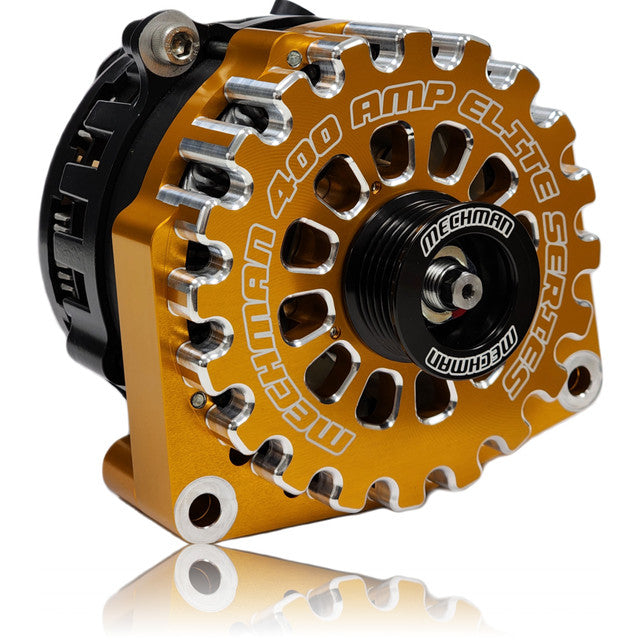

Newly redesigned for 2020, The Elite series offers the highest possible amperage and durability available in a large case alternator. 6 phase technology combined with massive twin rectifier assemblies and 12 diodes makes these alternators totally durable for daily use, while still maintaining 200+ amps at engine idle speeds.

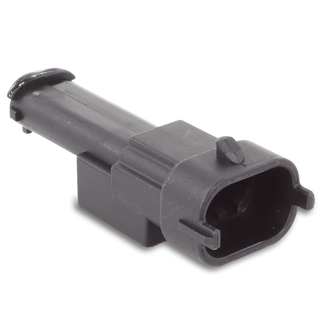

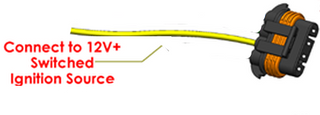

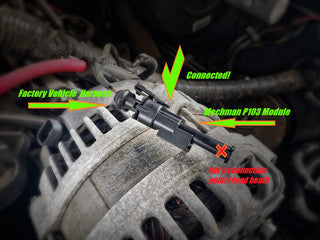

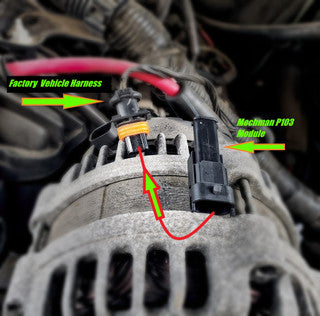

These alternators use the more robust 4 pin style regulator than the OE 2 pin ECU controlled alternator. There is no extreme voltage fluctuation as this will bypass the RVC charging system on all 2005> GM truck applications. Simply install the included 1 wire P101 harness to a tested 12v switched source and plug in the included P103 module into the vehicles 2 pin original alternator wiring harness. No check battery light, no computer controlled voltage swings. The voltage you want, when you want it!

Fitments:

Name	Model	Engine	Year(s)
BUICK	Rainier	5.3	07-08
CADILLAC	Escalade	5.7 / 6.0 / 6.2	05-13
CHEVROLET	Avalanche	All Engines	05-13
CHEVROLET	Full Size Truck/Silverado	4.3	05-13
CHEVROLET	Full Size Truck/Silverado	4.8	05-13
CHEVROLET	Full Size Truck/Silverado	5.3	05-13
CHEVROLET	Full Size Truck/Silverado	6.0	05-13
CHEVROLET	Full Size Truck/Silverado	6.2	09-13
CHEVROLET	Full Size Truck/Silverado	8.1	06-07
CHEVROLET	Suburban	All Gas Engines	05-14
CHEVROLET	Tahoe/Full Size Blazer	All Gas Engines	05-13
CHEVROLET	Trailblazer	5.3	07-09
CHEVROLET	Trailblazer	6.0	07-09
GMC	Envoy	5.3	07-08
GMC	Full Size Truck / Sierra	4.3	05-13
GMC	Full Size Truck / Sierra	4.8	05-13
GMC	Full Size Truck / Sierra	5.3	05-13
GMC	Full Size Truck / Sierra	6.0	05-13
GMC	Full Size Truck / Sierra	6.2	07-13
GMC	Full Size Truck / Sierra	8.1	06-07
GMC	Yukon	All Gas Engines	05-13
HUMMER	H2	6.2	08-09
HUMMER	H3	5.3	08-10
