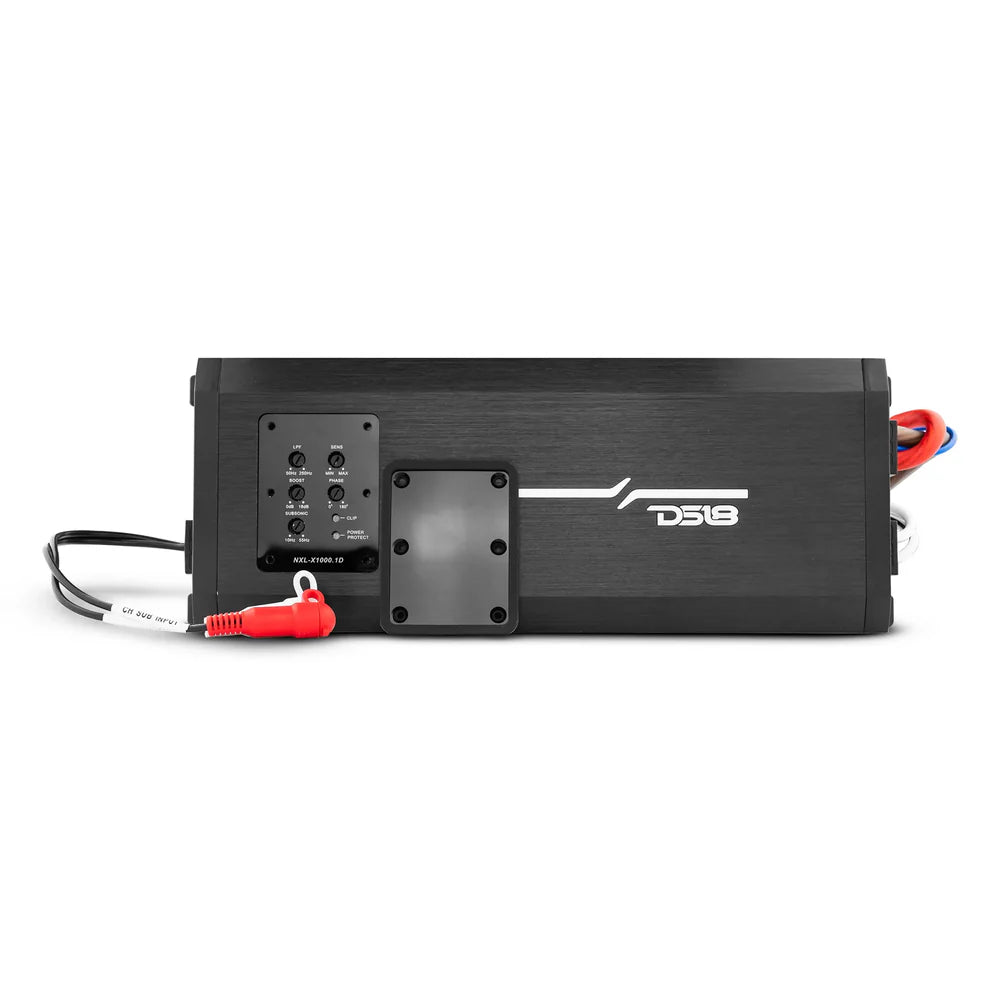

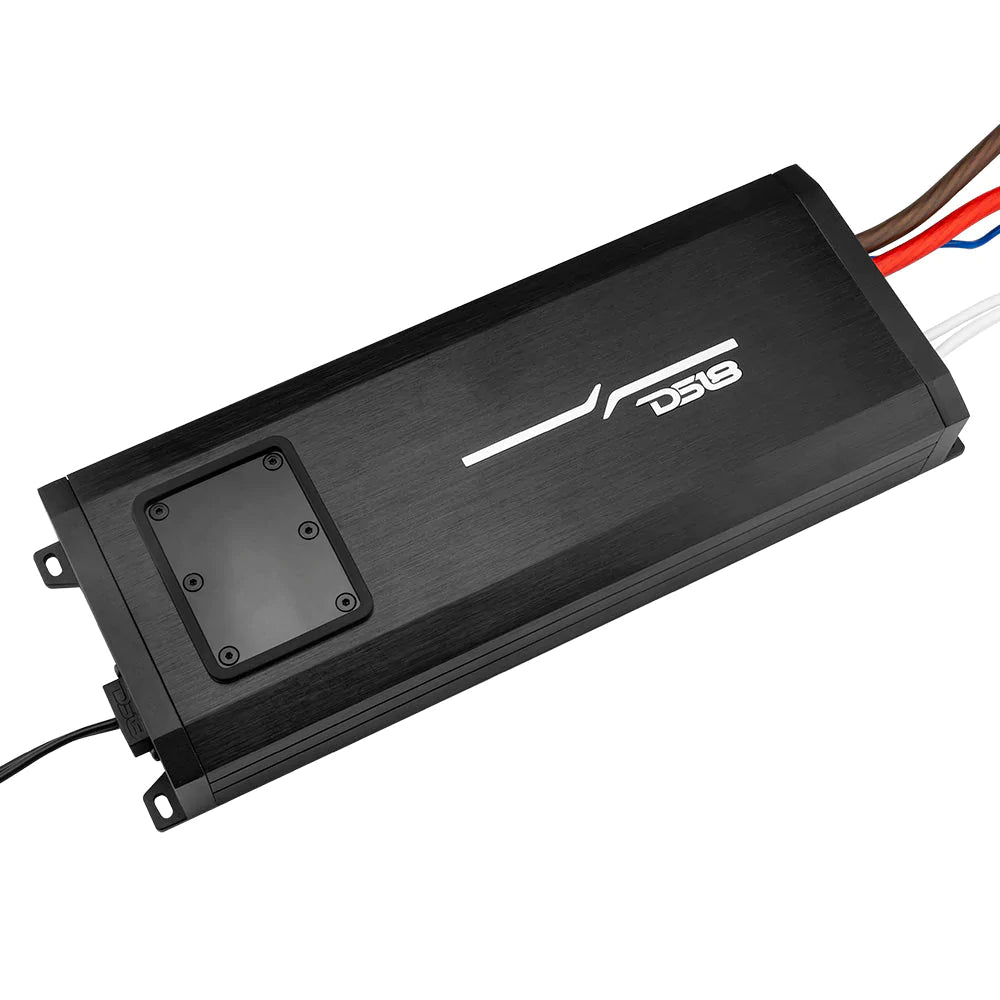

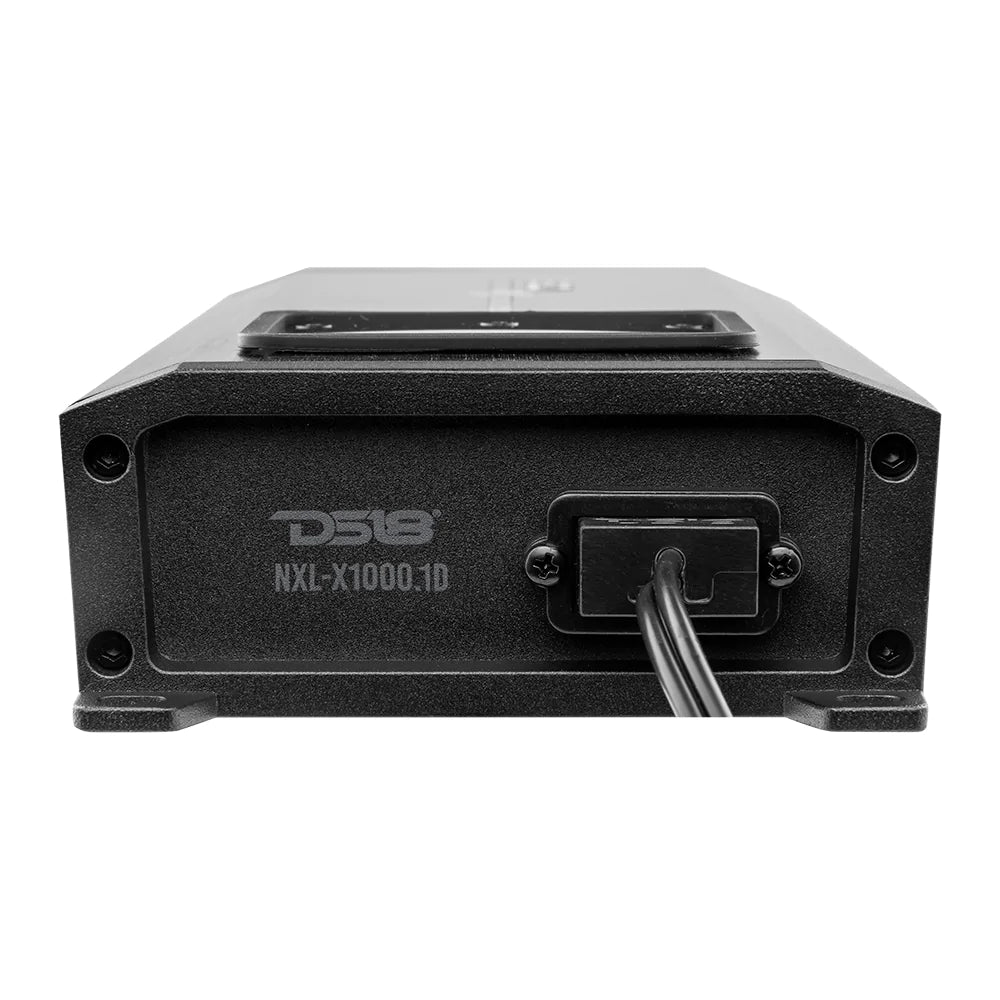

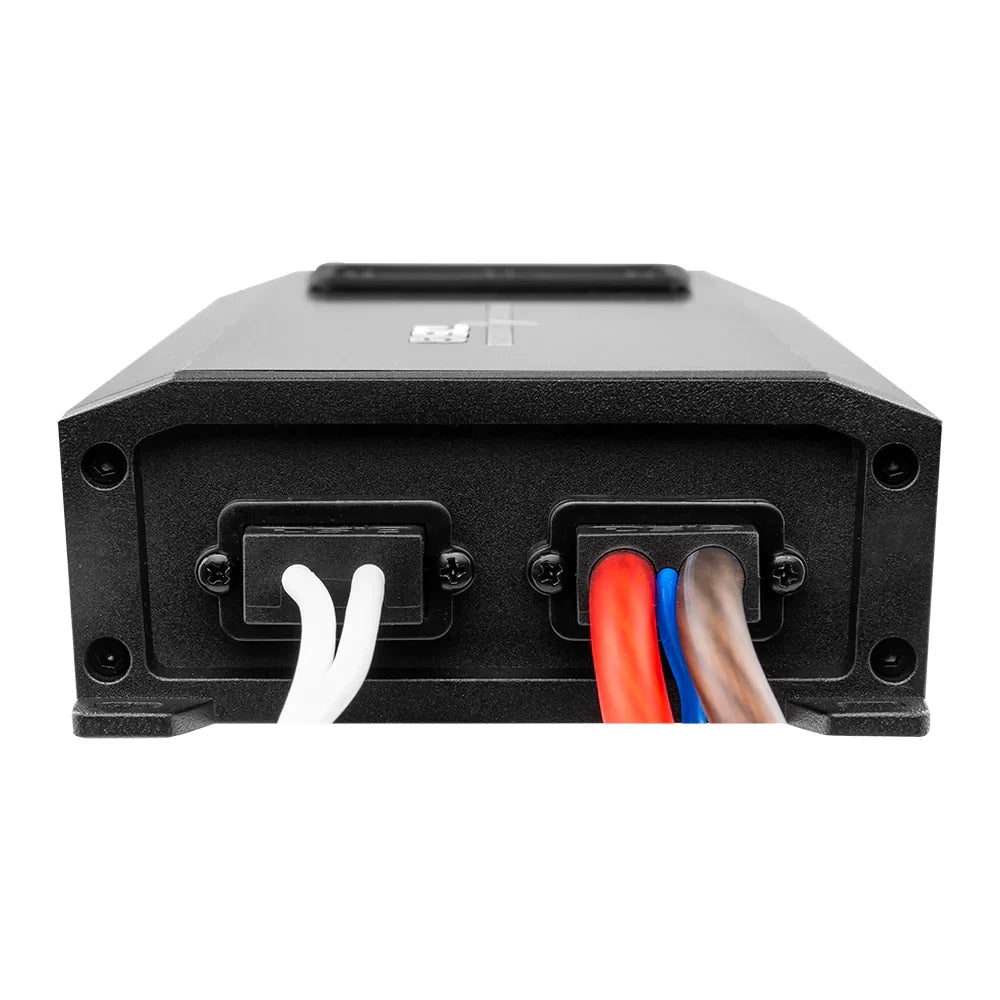

DS18 HYDRO NXL-X1000.1D
DS18 HYDRO NXL-X1000.1D
Regular price
$499.95 USD
Regular price
$529.95 USD
Sale price
$499.95 USD
Unit price
/
per
Shipping calculated at checkout.
Description
| Specifications | |
| POWER | |
| Total Watts (Peak) | 2000W |
| RMS Power @ 4 ohm | 350W |
| RMS Power @ 2 ohm | 600W |
| RMS Power @ 1 ohm | 1000W |
| RMS Power @ 4 ohm Bridge | - |
| AUDIO | |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio 1W@4Ω | > 100dB |
| Efficiency @ 4ohm | 0.83 |
| Input Impedance | 20KΩ |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | < 0.05% |
| Low Level Input Range | 200mV-5V |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50Hz-250Hz |
| Bass Boost Range | 0-18dB |
| Bass Boost Frequency | 42Hz |
| Infrasonic Filter | 10Hz-55Hz |
| Phase Selector | 0-180° |
| FEATURES | |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Led Indicators | Power / Protection / Clip |
| Power Input Size | 4GA Tinned OFC |
| Fuse Size | 2 x 50A (100A) |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7-16V) |
| Body Color / Finish | Black Brushed Aluminum |
| MEASUREMENT | |
| Overall Length | 11.8" / 302mm |
| Overall Wide | 4.4" / 112mm |
| Overall Height | 1.77" / 45mm |
| Heatsink Length | 11" / 281.6mm |
| Gross Single Unit Weight | 2.21kg |
